应用领域範圍•高品質乳品及酸奶用橡胶材料橡胶软管，适于于吸进去和输送机酸奶、其副产物的及多余脂肪性文丘里管。•比较广泛选在乳品厂、吃了油厂、饼干厂或相关食品饮料厂。很大采在是需要特别好的弯曲成 的性能和非常多的所需生活环境下的选用。有效基本特征•无pvc增塑剂、无甲壳动物双重性的内管，严防细菌病毒向外扩散，并加强组织领导对气流输送物品不太会时有发生接触到性水污染。
•软水管表面分解成原材料能抵触通常干净的剂，存在正常的耐美观风蚀和耐老化试验能。排水管型式： 内管：NBR生橡胶材料 (丁纳生橡胶材料,NAB90)，黄白色，食品饮料级，无骚味，无色无味道，平整，弧面通畅。 做好层框架：高韧度小高层人工人造纤维，植入式回旋型铝合金钢线。最外层提炼生橡胶，天蓝色，抗刹车盘磨损，耐大方得体腐蚀，耐破裂，光滑，布状外表。

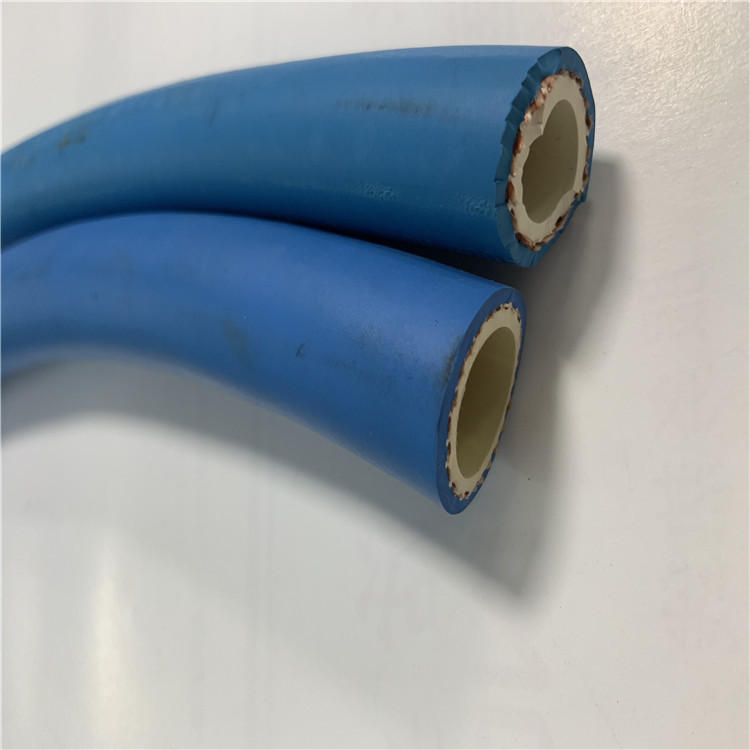

APPLICATION •Premium milk and dairy rubber hose specifically designed to convey milk and deriva-tives and liquid fatty foodstuffs in general. For suction and delivery purposes.•Ideal solution in dairies, edible oil mills, cheese productions and food industries in generalwhere the resistance to demanding applications together with flexibility in use are required.MAIN BENEFITS•The special structure totally free from plasticisers and animal derivatives reduces any potential risks of bacteria proliferation and cross contamination of the media conveyed. •The composition of its rubber cover exhibits a good resistance against chemicalcleaning products and grants utmost resistance to weather and ageing.CONSTRUCTION - TUBE NBR rubber (NAB90), clear, food quality, odourless and tasteless, smooth, mirror-like.REINFORCEMENTS -Synthetic textile plies, embedded steel wire helix.COVER Synthetic rubber, blue colour, resistant to abrasion, weather, ageing, smooth, cloth finish.
| GREATFLEX-RN20增强纤维编织NBR橡胶管 |
品名
PART NANE | 内径
INNER DIA | 壁厚
WALL THICKNESS | 外径
OUTER DIA | 拆弯半径
BEND RADIUS | 工作压力
WORK PRESSURE | 爆破压力
BURST PRESSURE | 长度
LENGTH |
| (mm) | +1.0/-0.5mm | (mm) | (mm) | Bar | psi | Bar | psi | M/PCS |
| RE20-10 | 9.5 | 3.5 | 16.5 | 70 | 20.0 | 290 | 80.0 | 1160 | 100 |
| RN20-13 | 12.7 | 4.5 | 21.7 | 100 | 20.0 | 290 | 80.0 | 1160 | 100 |
| RN20-016 | 15.9 | 4.5 | 24.9 | 130 | 20.0 | 290 | 80.0 | 1160 | 60 |
| RN20-019 | 19 | 5.5 | 30.0 | 150 | 20.0 | 290 | 80.0 | 1160 | 60 |
| RN20-025 | 25 | 6 | 37.0 | 200 | 10.0 | 145 | 40.0 | 580 | 60 |
| RN20-032 | 32 | 6 | 44.0 | 250 | 10.0 | 145 | 40.0 | 580 | 40 |
| RN20-038 | 38 | 6.5 | 51.0 | 300 | 10.0 | 145 | 40.0 | 580 | 40 |
| RN20-051 | 50.8 | 7 | 64.8 | 400 | 10.0 | 145 | 40.0 | 580 | 40 |
| RN20-064 | 63.5 | 8 | 79.5 | 500 | 10.0 | 145 | 40.0 | 580 | 40 |
| RN20-076 | 76 | 9 | 94.0 | 600 | 10.0 | 145 | 40.0 | 580 | 40 |
