详细介绍
品名
PART NANE | 内径
INNER DIA | 壁厚
WALL THICKNESS | 外径
OUTER DIA | 拆弯半径
BEND RADIUS | 工作压力
WORK PRESSURE | 爆破压力
BURST PRESSURE | 长度
LENGTH |
| (mm) | +1.0/-0.5mm | (mm) | (mm) | Bar | psi | Bar | psi | M/PCS |
| RE20-10 | 9.5 | 3.5 | 16.5 | 70 | 20.0 | 290 | 80.0 | 1160 | 100 |
| RN20-13 | 12.7 | 4.5 | 21.7 | 100 | 20.0 | 290 | 80.0 | 1160 | 100 |
| RN20-016 | 15.9 | 4.5 | 24.9 | 130 | 20.0 | 290 | 80.0 | 1160 | 60 |
| RN20-019 | 19 | 5.5 | 30.0 | 150 | 20.0 | 290 | 80.0 | 1160 | 60 |
| RN20-025 | 25 | 6 | 37.0 | 200 | 10.0 | 145 | 40.0 | 580 | 60 |
| RN20-032 | 32 | 6 | 44.0 | 250 | 10.0 | 145 | 40.0 | 580 | 40 |
| RN20-038 | 38 | 6.5 | 51.0 | 300 | 10.0 | 145 | 40.0 | 580 | 40 |
| RN20-051 | 50.8 | 7 | 64.8 | 400 | 10.0 | 145 | 40.0 | 580 | 40 |
| RN20-064 | 63.5 | 8 | 79.5 | 500 | 10.0 | 145 | 40.0 | 580 | 40 |
| RN20-076 | 76 | 9 | 94.0 | 600 | 10.0 | 145 | 40.0 | 580 | 40 |
应运区间•高品控乳品及乳制品用聚氨酯连接管，采用来吸进和传输乳制品、其副货品及皮脂性流体动力。•诸多用途于乳品厂、吃用油厂、吃奶酪厂或各种食品类厂。十分适合于业务需求较好的弯度 使用性能和大量业务需求周围环境下的用途。更为明显性能特点•无增粘剂、无家禽ip产业的内管，以防大肠杆菌蔓延，并为了确保对气流输送成品不用發生接触性性影响。
•橡胶管表面层合成视频物料能防御普普通通干净剂，拥有着良好的的耐十足侵蚀作用和耐的老化能力。塑料软管设计： 内管：NBR硅胶 (丁纳硅胶,NAB90)，乳白色，食物级，无恶臭，无气味道，平整，雾面平整。 提高层机构：高比强度度多层电路板结合玻纤，植入性双螺旋型金属件钢线。最外层提炼塑料，淡蓝色，抗受损，耐霸气风蚀，耐脱落，纹理，布状界面。

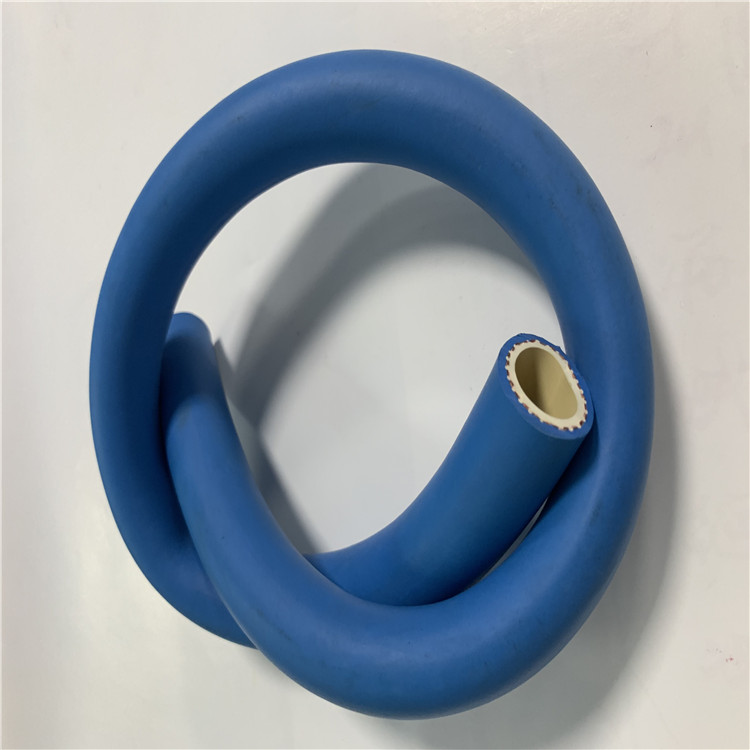

APPLICATION •Premium milk and dairy rubber hose specifically designed to convey milk and deriva-tives and liquid fatty foodstuffs in general. For suction and delivery purposes.•Ideal solution in dairies, edible oil mills, cheese productions and food industries in generalwhere the resistance to demanding applications together with flexibility in use are required.MAIN BENEFITS•The special structure totally free from plasticisers and animal derivatives reduces any potential risks of bacteria proliferation and cross contamination of the media conveyed. •The composition of its rubber cover exhibits a good resistance against chemicalcleaning products and grants utmost resistance to weather and ageing.CONSTRUCTION - TUBE NBR rubber (NAB90), clear, food quality, odourless and tasteless, smooth, mirror-like.REINFORCEMENTS -Synthetic textile plies, embedded steel wire helix.COVER Synthetic rubber, blue colour, resistant to abrasion, weather, ageing, smooth, cloth finish.
