外波纹硅胶钢丝软管FC31

External corrugated silicone wire hose FC31

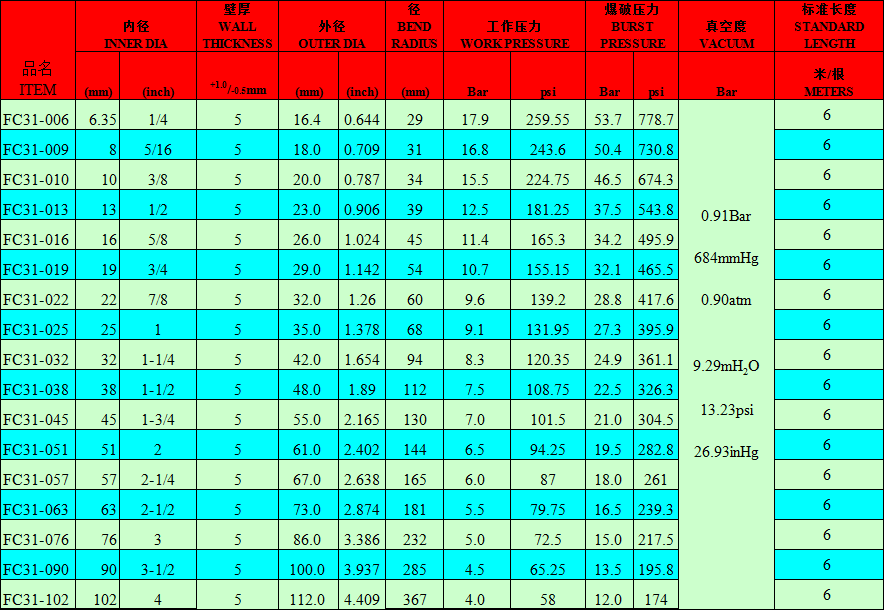

注:1.标准规范制作长为6米（特出可定做10米）。能够 做切短。多种的直径耍求能够 随着客的耍求来订造。   2.在世俱杯网站入口 在指标列表中检验是代履行超低温，标准规定空标准气压心态。当心理水压发生变化时，湿度每升上升时间100度，心理水压会减退百分之15。

REMARKS: 1, Standard length is 6 meters and we can customize the hose length according to customers' needs.2, The test in the parameter list is in accordance with the normal temperature and the standard atmospheric pressure state. When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%.

好产品应用领域：   特别的选择用到车辆或推送弯折磨损性很大的操作场所，内部光面，会磨损，适用于推送各种各样乳类成品，并有很不错的减震安全性能。同时会运用到机械性健身运动频点高场所。         成品设计：   手编：四层夹布网纹手编   钢条：主要采用单双层304不锈钢装饰管吗条，差距为10MM   外光：本身水波纹状，内腔高斯模糊，如镜面板。色调能够 制作如图所示。      好产品的特点：   ——上班温湿度的范围‘-60ºC / +180ºC (-76ºF / +356ºF)在多日间内能达到到  220ºC (392ºF)   ——具很棒拉伸性，外壁圆滑清潔，易洁净不粘水，用洁净物洁净后不悬挑脚手架其余余留物，可主要采用室温高压变压器压缩空气消毒液和无菌——无嗅、无色无味,完整没有毒性，包含丝毫塑化剂和修改剂因素。完整满足食品原料FDA和怪物医用品级USP的需要。        生活设施插头：   TC管插头（直通式高速 管插头316L），SMS管插头，DIN快接，CLAMP，CLOCK，J螺母管插头，等原料为304或316L任雇主挑选到。      的质量v认证：   ——白金透明硅胶排水管在俄罗斯FDA 21 CFR 177.2600(面制品和中药的监管局)面制等级资格认证。   ——珀金硅胶制品胶管根据欧洲德国FDA/BfR零件图 XV标规范验证和LFBG和BGVV标规范验证。   ——白金热熔胶排水管具备根据韩国医疗器具USP Class VI级标准规定证书。   ——珀金矽胶管按照欧盟委员会电脑指令2008/95 / ECC的上限便用有的不利物品(RoHS)青睐。

Product application:Specially recommended for transportation and deliverying in working circumstances, which needs the greater bend of the hose, the inner layer is smooth without deformation.Suitable for conveying all kinds of dairy products, and has a better shock absorption properties. At the same time, it can be applied to high mechanical frequency occasions.

Product structure:Weaving: 3 layers of cloth woven meshSteel wire: using single layer of 304 stainless steel wire, the spacing is 10mmAppearance: corrugated outside, smooth inner surface like mirrorcolor: custom made according to customer's request.

Product characteristics:-The working temperature range: -60 to +180 degrees Celsius (or -76 to +356 degrees Fahrenheit) and it can reach 220 degrees Celsius (or 392 degree Fahrenheit) in a short period of time-With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking, After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade USP.
