铂金硫化硅胶钢丝软管FP32

Platinum vulcanization silicone wire hose FP32

注：1.原则制作长为6米（非常规可定制10米），不错做切短。各种的內径的想要不错依据老客户的的想要来定制。 2.在世俱杯网站入口 在参数值表上各种测试是遵照常温壮态，细则大方得体压壮态。当压差改变时，环境温度每上涨浮度100度，压差会变低百分之15。

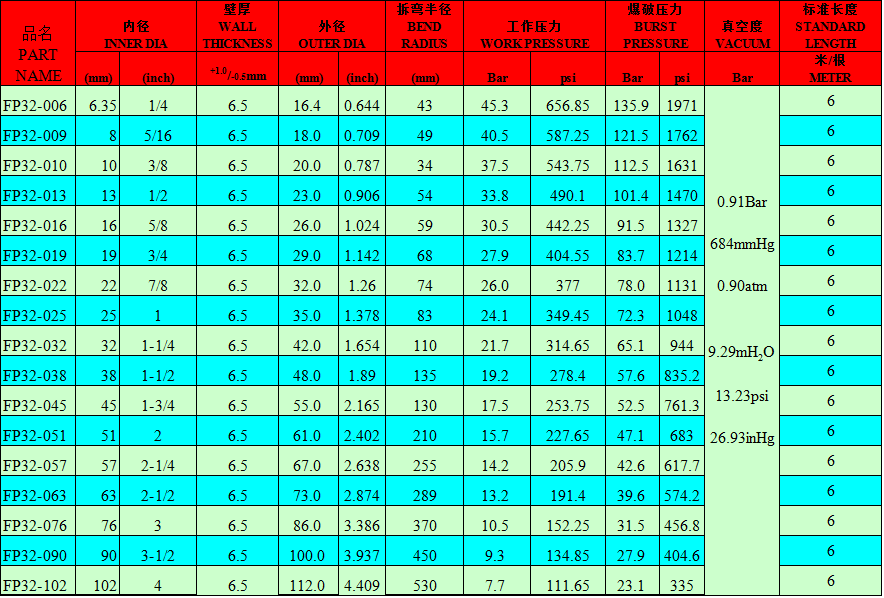

REMARKS: 1, Standard length is 6 meters or especially 10 meters and we can customize the hose length according to customers' needs.2, The test in the parameter list is in accordance with the normal temperature and the standard atmospheric pressure state. When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%.

的产品应用领域： 特意选择于运输车或输送管高恒温商品、彩妆品、石油化工和医药集团行业内和生物制品项目用的介质或半介质气固两相流，直接可应于异常低温压力状况。 如静脉注射肉食项目类别很多乳包装品；肉食品类机戒设配用连结管；酒类批发用连结软管；油类设配静脉注射用的连结管，医药公司设配连结滤油器、软管等  厂品机构： 手工编织方法：四层夹布网纹手工编织方法， 刚丝：应用单层304不锈刚丝，单层刚丝距离为4MM，更具3倍之普普通通刚丝管的各种压力  产品设备特点： ——事情温湿度的范围‘-60ºC / +180ºC (-76ºF / +356ºF)在多日间内会达到  220ºC (392ºF) ——承正负符号压实力强，用难以清理物难以清理后不悬挑脚手架每残余的物，可选择室温高压力蒸汽发生器杀菌和杀菌。 ——无嗅、无气味,全部剧毒，不包括任何人塑化剂和插入剂材料。全部适合食材FDA和生物体医疗仪器级USP的规范。 ——的产品历经温度过高180ºC*4钟头温度过高加硫后，不封带来其中分析物，明确参考使用数据显示表。  生活设施线接头： TC直直插头（快接便捷直直插头316L），SMS直直插头，DIN快接，CLAMP，CLOCK，J外螺纹直直插头，等的材料为304或316L任客购选。  品质保证资质认证： ——钻石硅胶制品塑料软管利用美利坚FDA 21 CFR 177.2600(物品和肿瘤药物治理局)物官阶安全认证。 ——珀金硅橡胶软水管用美国FDA/BfR零部件 XV规则化身份验证和LFBG和BGVV规则化身份验证。 ——钻石蛙胶高压软管不符合进行法国医疗器材USP Class VI级准则企业认证。 ——珀金热熔胶管根据欧共体信息2008/95 / ECC的限止运用个别辐射危害物品(RoHS)喜爱。

Product application:Widely used for transportation or delivery of low temperature food, cosmetics, chemical materials or the fluid or semi liquid fluid of pharmaceutical industry and biological engineering.(such as the suction of food or dairy products; the connection hoses used on food machinery liquor equipment; oil production equipment and medical equipment, etc.)

Product structure:Weaving: 4 layers of cloth woven meshSteel wire: DOUBLE layer of 304 stainless steel wire and the spacing of double layer of steel wire is 4mm and the pressure is 3 times more than the one of the ordinary wire hose.

Product characteristics:-The working temperature range: -60 to +180 degrees Celsius (or -76 to +356 degrees Fahrenheit) and it can reach 220 degrees Celsius (or 392 degree Fahrenheit) in a short period of time-With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking, After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade USP.-Product will not produce any decomposition after high temperature of 180 degrees Celsius * 4 hours of high temperature Vulcanization with strong bearing capacity of negative and positive pressure.
