工业用软管SP80
Industrial hose SP80
注:1.条件生产方式长短为6米（特殊性可订作10米）。会做切短。另一个的內径耍求会只能根据潜在客户的耍求来量身定制。 2.在世俱杯网站入口
在因素腕表软件测试是遵循常温方式，标准化细颗粒物压方式。当各种负荷始终不变时，室温每增长比率100度，各种负荷会下滑百分之15。

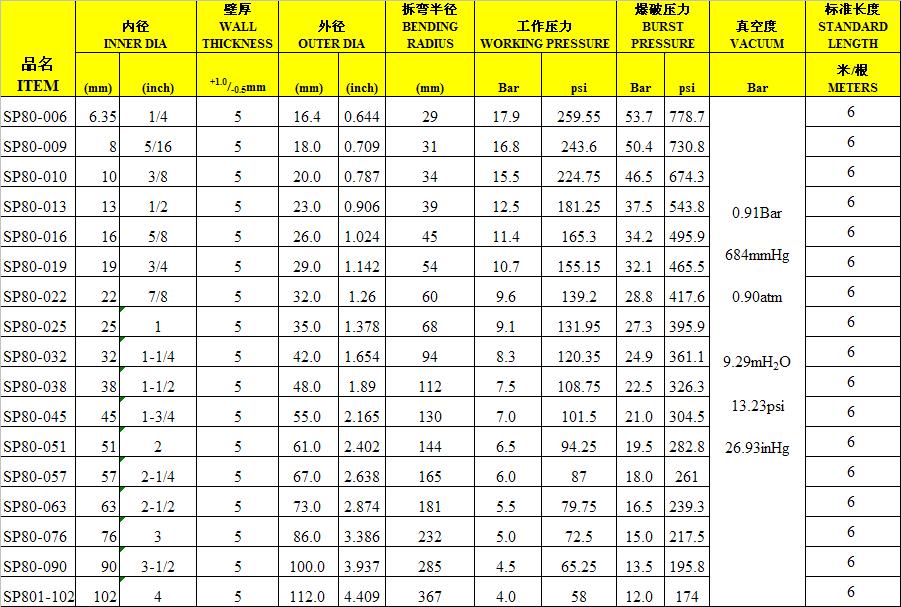

REMARKS: 1, Standard length is 6 meters and we can customize the hose length according to customers' needs.2, The test in the parameter list is in accordance with the normal temperature and the standard atmospheric pressure state. When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%.
產品采用： 有点引荐用做装卸搬运或输送带行业用油，新汽车打着机组件，货柜车，海洋环境排水管等。 如车辆大卡车类，热车机，风能发电齿轮油，重工业施工用油等。 类产品架构： 编识：第二层夹布网纹编识 钢线：选择单双层不锈钢材质线，跨距为10MM 新产品基本特征： —工作任务室温区域‘-60ºC / +180ºC (-76ºF / +356ºF)在多日间内大约到 220ºC (392ºF) —极具太好弯度性，内侧壁平滑清潔，易的清晰不粘水，用的清晰物的清晰后不黏附任意留下物。 —无嗅、淡而无味,全残毒，富含一些塑化剂和插入剂材质。 搭配管接头： TC连直接线头（连通更快连直接线头316L），SMS连直接线头，DIN快接，CLAMP，CLOCK，J管螺纹连直接线头，等质量为304或316L任朋友分辨。 产品认证证书： —热熔胶管代履行欧盟成员国标志位2008/95 / ECC的束缚操作或者不好有机物(RoHS)好评。
Product application:Specially recommended for transportation or transportation of industrial oil,automotive engine parts, trucks, marine pipelines, etc.
Product structure:Weaving: two layers of cloth woven meshSteel wire: single layer of stainless steel wire,with the spacing of 10mm.
Product characteristics:-working temperature range -60 degree C / +180 degrees C (or -76 degrees F to +356 degree F) in a short period of time,it can reach 220 degrees C (392 degrees F)-With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking,After cleaned by cleaning materials, no residue remained-odorless, tasteless, non-toxic,without any additives and plasticizer.
Supporting connectors:TC connector (straight quick connector 316L), SMS connector, DIN quick connect, CLAMP, CLOCK, J threading connectors, etc,.The material is stainless steel 304 or 316L.
Quality certification:-in accordance with EU directive 2008/95 / ECC restrictions on the use of certain hazardous substances (RoHS) approval.
