东莞市世俱杯网站入口硅胶制品有限公司

外波纹硅胶钢丝软管FC31

External corrugated silicone wire hose FC31

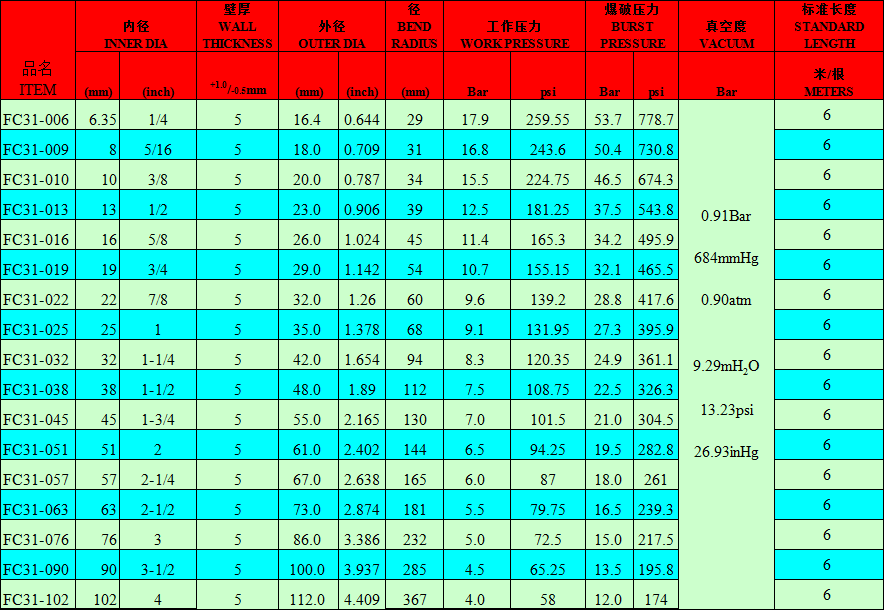

注:1.标准规定生孩子总长度为6米（异常可订作10米）。能够做切短。另一个的直径让能够结合客的让来定制大小。   2.在世俱杯网站入口 在技术指标腕表测试方法是代履行常温的，要求臭氧层压程序。当压为变了时，湿度每升小幅度100度，压为会降低百分之15。

REMARKS: 1, Standard length is 6 meters and we can customize the hose length according to customers' needs.2, The test in the parameter list is in accordance with the normal temperature and the standard atmospheric pressure state. When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%.

厂品运用：   比较推送代替运输管理或卸料管耐折性很高的工作任务的时候，内部通畅，不想变化，更适合卸料管多种乳类制作品，并有适合的减震能。一同就可以应代替自动化设备健身次数高的时候。         物料构成：   经编织方法：二三层夹布网纹经编织方法   钢线：用于一层304不锈钢圆管线，行距为10MM   外观设计：长相水纹状，侧壁拟合，如鏡面。背景色就可以设计如同。      软件特点：   ——办公室温空间‘-60ºC / +180ºC (-76ºF / +356ºF)在短暂间内相当于到  220ºC (392ºF)   ——具备太好微弯性，壁内光滑细腻清潔，易清理不粘水，用清理物清理后不依附其它剩余的物，可主要采用高溫直流电蒸汽加热空气消毒和灭菌处理——无嗅、无色无味,完整没有毒性，可含所有的塑化剂和加入剂基本成分。完整具有商品FDA和生物体医疗器械级USP的规范。        模块化管接头：   TC连接管（直通车快捷连接管316L），SMS连接管，DIN快接，CLAMP，CLOCK，J螺孔连接管，等原材料为304或316L任的客户筛选。      产品品质资格认证：   ——钻石硅胶材料橡胶管能够法国FDA 21 CFR 177.2600(饮食和治疗药物的监督局)饮食级认正。   ——珀金硅胶制品胶管依据美国FDA/BfR零件加工 XV要求认正和LFBG和BGVV要求认正。   ——白金热熔胶排水管具有在美利坚医疗器具USP Class VI级规范资格认证。   ——白金和铂金热熔胶管行政相对人欧洲共同体标志位2008/95 / ECC的限定安全使用某一些损害产物(RoHS)认同感。

Product application:Specially recommended for transportation and deliverying in working circumstances, which needs the greater bend of the hose, the inner layer is smooth without deformation.Suitable for conveying all kinds of dairy products, and has a better shock absorption properties. At the same time, it can be applied to high mechanical frequency occasions.

Product structure:Weaving: 3 layers of cloth woven meshSteel wire: using single layer of 304 stainless steel wire, the spacing is 10mmAppearance: corrugated outside, smooth inner surface like mirrorcolor: custom made according to customer's request.

Product characteristics:-The working temperature range: -60 to +180 degrees Celsius (or -76 to +356 degrees Fahrenheit) and it can reach 220 degrees Celsius (or 392 degree Fahrenheit) in a short period of time-With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking, After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade USP.
