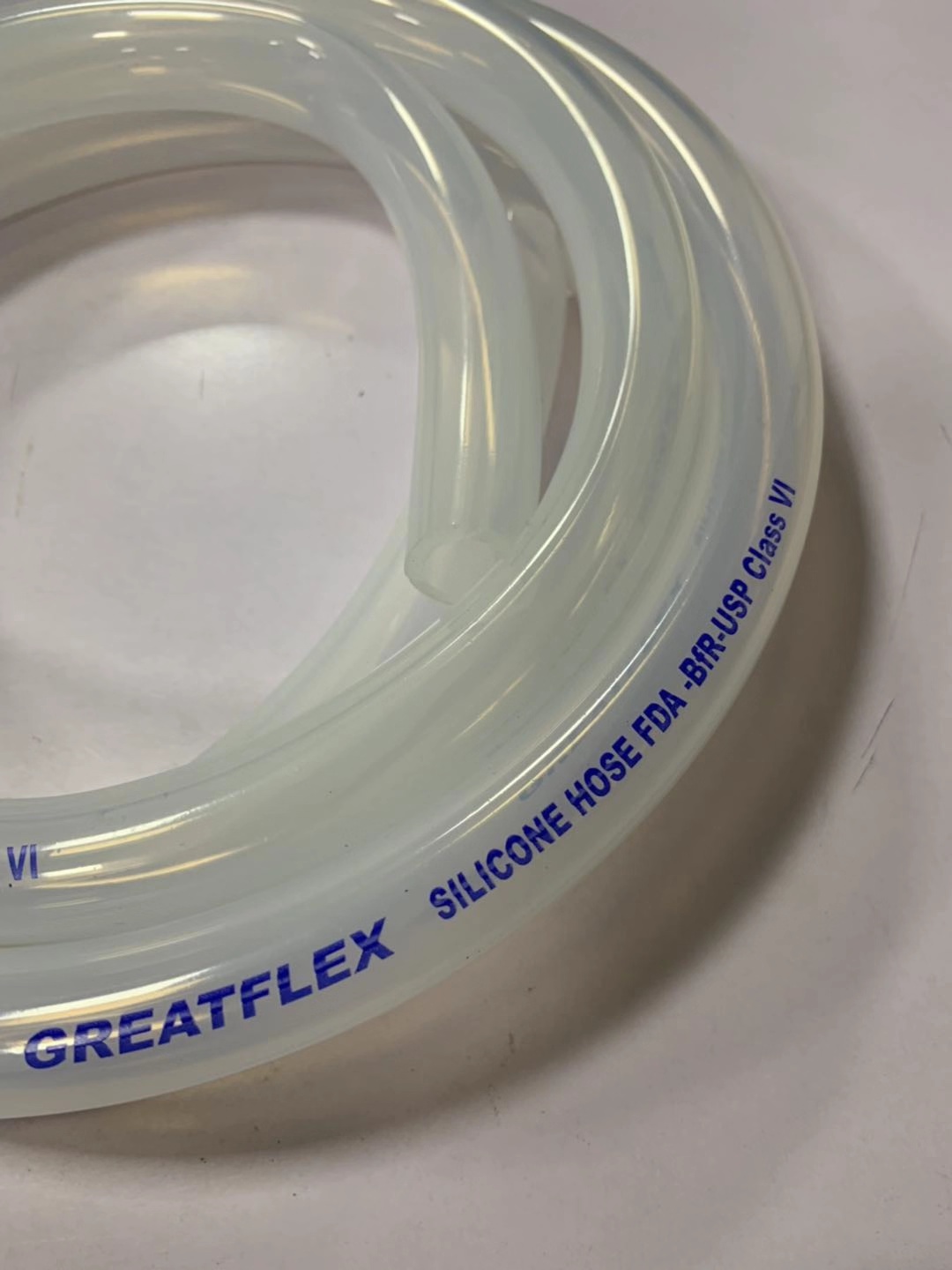

| BH00铂金硅胶蠕动泵管 Platinum silicone hose (pump hose) BH00 | ||||||||||
| 品名 PART NAME | 管号 HOSE NO | 内径 INNER DIA | 外径 OUTER DIA | 弯曲半径 BEND RADIUS | 真空度 VACUUM | 标准长度 STANDARD LENGTH | ||||
| mm | inch | mm | inch | mm | inch | Bar | Psi | 米/根 METERS PER PC | ||
| BH00-015 | #15 | 4.76 | 3/16" | 7.92 | 0.31" | 20 | 0.79 | N/A | N/A | 15 |
| BH00-016 | #16 | 3.18 | 1/8" | 6.34 | 0.25" | 30 | 1.18 | N/A | N/A | 15 |
| BH00-017 | #17 | 6.35 | 0.25" | 9.60 | 0.36" | 40 | 1.57 | N/A | N/A | 15 |
| BH00-018 | #18 | 7.90 | 0.31" | 11.11 | 0.42" | 60 | 2.36 | N/A | N/A | 15 |
| BH00-024 | #24 | 6.40 | 0.25" | 11.40 | 0.42" | 90 | 3.54 | N/A | N/A | 15 |
| BH00-025 | #25 | 4.80 | 3/16" | 8.00 | 0.31" | 110 | 4.33 | N/A | N/A | 15 |
| BH00-026 | #26 | 6.40 | 0.25" | 13.00 | 0.52" | 150 | 5.91 | N/A | N/A | 15 |
| BH00-035 | #35 | 7.90 | 0.31" | 14.70 | 0.57" | 200 | 7.87 | N/A | N/A | 15 |
| BH00-036 | #36 | 9.50 | 0.37" | 14.70 | 0.43" | 280 | 11.02 | N/A | N/A | 15 |
| BH00-070 | #70 | 7.90 | 0.31" | 18.90 | 0.57" | 200 | 7.87 | N/A | N/A | 15 |
| BH00-073 | #73 | 7.90 | 0.31" | 16.10 | 0.57" | 200 | 7.87 | N/A | N/A | 15 |
| BH00-082 | #82 | 12.70 | 0.50" | 19.30 | 0.75" | 200 | 7.87 | N/A | N/A | 15 |
| BH00-087 | #87 | 12.70 | 0.50" | 25.30 | 1.00" | 200 | 7.87 | N/A | N/A | 15 |
| BH00-088 | #88 | 12.70 | 0.50" | 22.20 | 1.00" | 200 | 7.87 | N/A | N/A | 15 |
| BH00-089 | #89 | 15.90 | 0.62" | 22.20 | 0.87" | 200 | 7.87 | N/A | N/A | 15 |
| BH00-091 | #91 | 19.05 | 0.75 | 32.60 | 1.25" | 350 | 13.78 | N/A | N/A | 15 |
